How to Read a Crane Load Chart – Capacity, Radius and Safety
Looking at a crane load chart for the first time can feel like a maths exam. Between the numbers, lines and technical terms, it’s easy to feel unsure – especially when you know how one wrong call can lead to costly damage or serious safety risks.
If this is you, you’re not alone. Every week, construction teams contact Preston Rentals asking for help interpreting load charts. They’re not new to cranes, but they are under pressure to get it right.
Here’s the good news: once you understand the basics – capacity, radius, boom angle and how they all work together – these charts become a tool you can trust, not fear. And Preston Rentals is here to help you make sense of it all.
In this article, you’ll learn how to read crane load charts confidently – including what those numbers actually mean, what to watch out for, and how to use them to make safe, smart decisions on-site.
Why Crane Load Charts Matter
Crane load charts are more than just paperwork. They’re safety blueprints. These charts show the lifting capacity of a crane at various boom lengths, heights, and working radii. If you ignore them or guess, you’re not just risking the load — you’re risking lives, equipment, and your schedule.
Let’s say you’re using a mobile crane and lifting a 5-tonne load at a 20-foot radius. If the chart says that crane can only handle 4.2 tonnes at that radius, you’re already in the danger zone. But that’s the kind of mistake that happens when teams glance over the chart or don’t know how to read the numbers.
The chart gives you the crane’s limitations. It factors in tipping points, structural integrity and legal load limits. If you exceed these, even slightly, your crane could fail or tip over. And if you’re operating within tight spaces, on uneven terrain or near power lines, the margin for error shrinks even further.
Understanding your crane’s load chart protects your crew, keeps your project compliant, and helps you get the job done on time without unnecessary delays or insurance headaches.
Crane Load Charts Explained
They might appear complicated at first glance, but crane load charts are built on just a few core elements. Once you know what each part means, it becomes much easier to read — and use – to preserve you and your team’s safety.

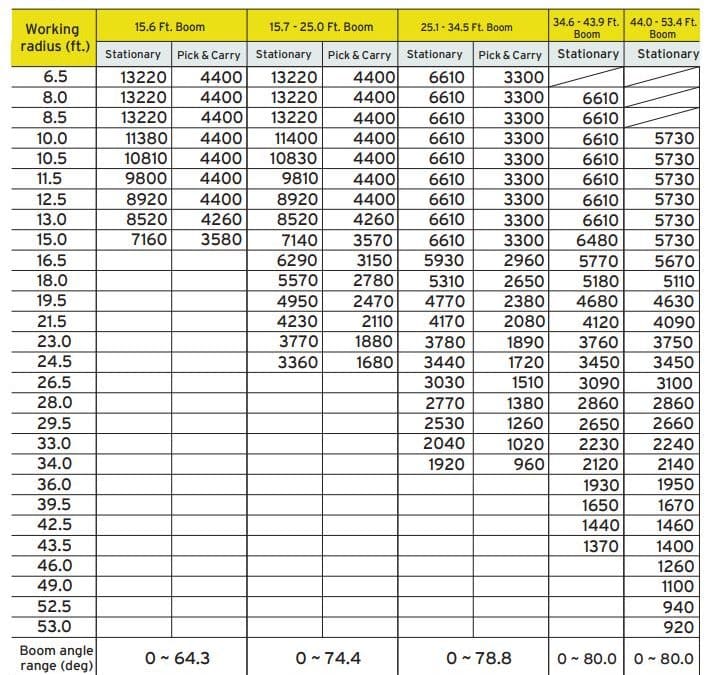

Here’s what you’ll typically find on a mobile crane load chart:
1. Capacity (Weight Limit)
This is the maximum weight the crane can lift at a specific radius and boom length. It’s often displayed in tonnes or pounds across a grid. Important: this is not a flat maximum – it changes depending on how far out the load is.
2. Radius (Working Radius)
Also called the “crane radius,” this is the distance from the centre of the crane’s rotation (slew ring) to the centre of the load. The longer the radius, the less the crane can lift. That’s why lifting 10 tonnes close to the crane might be fine, but at full extension, it’s not.
3. Boom Length and Angle
The chart shows different boom configurations – telescopic or fixed – and the angles they’re working at. Higher angles mean the load is closer to the crane and often safer to lift. Lower angles (flatter booms) increase the radius and reduce capacity.
4. Load Conditions
Some charts include notes about wind speed, outrigger position, counterweights, or whether the load is “on tyres” or “on outriggers.” These can drastically change the crane’s stability.
5. Crane Load Chart Calculator
Some manufacturers or rental companies (like Preston Rentals) offer a digital crane load chart calculator to make things easier. You plug in your radius and load weight, and the calculator tells you if it’s safe.
How to Read Crane Load Charts in Five Steps
Here’s the part that makes crane load charts less intimidating. Follow these steps and you’ll know exactly how to interpret what you’re looking at – and avoid costly mistakes.
Step 1: Identify Your Load Weight
Start with the weight of what you’re lifting. This includes everything – the load itself, rigging, hooks, and spreader bars. It has to be precise.
Example: Let’s say you need to lift a 6,000 lb. air conditioning unit, and the rigging adds another 500 lbs. Your total load is 6,500 lbs.
Step 2: Measure Your Radius
Use a crane radius chart or measure directly on-site from the crane’s centre of rotation to the load’s centre point. This tells you how far the crane is reaching – and how that impacts its lifting power.
Tip: Even a small increase in radius can drastically reduce the crane’s capacity.
Step 3: Check the Chart for Capacity at That Radius
Find the correct line on the chart that matches your boom length and angle. Then, cross-reference the radius to see if your crane can lift the load safely. If your load weight exceeds the charted capacity, don’t lift it.
Step 4: Factor in Site Conditions
Ask yourself:
- Are you using outriggers or tyres?
- Is the ground level and firm?
- Is it windy?
- Are there obstacles below where you’re lifting?
These all affect stability and may require derating the crane’s capacity.
Step 5: Don’t Forget Safety Margins
Never operate a crane right at its maximum rated load. Aim to stay below 75–85% of capacity where possible. It gives you room for unexpected shifts or minor miscalculations.
Understanding how to read a crane load chart involves much more than reading numbers. It’s about connecting those numbers to your actual site conditions and making the safest call every time.
Crane Radius and Capacity: Common Pitfalls
Even experienced site managers and operators can make missteps when working with crane load charts. Here are the most common (and costly) pitfalls – and how to avoid them.
1. Underestimating Radius
This is the #1 mistake. Measuring crane radius incorrectly – or guessing – can throw off your entire plan. Remember: as radius increases, lifting capacity drops. A small misread here can tip a crane.
What to do: Always use a tape measure or laser rangefinder to confirm your working radius and double-check the centre point of the load.
2. Ignoring Boom Angle and Length
People often look at radius alone, but boom angle and length change the lifting limits too. For example, telescoping the boom further out changes both the angle and the radius and can reduce capacity fast.
What to do: Make sure your chart matches the exact boom setup you’ll be using on-site.
3. Overlooking Site Conditions
A perfectly valid lift on paper might be dangerous in the real world. Soft ground, uneven surfaces, wind gusts, or close quarters can change everything.
What to do: Read the load chart in context with your site. Use outrigger pads, factor in wind limits, and communicate with your team.
4. Working Too Close to Max Capacity
Just because the chart says it can lift it, doesn’t mean you should. Mechanical tolerances, swinging loads and human error leave little room for mistakes.
What to do: Apply a buffer – aim to stay under 85% of the rated capacity. Safety should always come before speed.
Where Preston Rentals Comes In
Crane load charts can be intimidating, but you don’t have to figure them out alone.
At Preston Rentals, we do more than just rent out mobile cranes. We partner with construction teams across the US to make sure the right crane is matched to the right lift, at the right radius – no guesswork.
Whether you’re unsure about how to read a crane load chart, calculating your lift radius, or checking if your site setup is safe, our team is here to help. We’ll walk you through the chart, help you understand your crane’s capacity, and ensure you’re working within safe parameters.
Plus, all our fleet comes with clear, well-documented crane load charts, with guidance on tools like crane load chart calculators or on-site walk-throughs provided when required.
Bottom line: you don’t need to risk a lift based on assumptions. With Preston Rentals, you’ll have a team that prioritises your safety, your schedule and your success.
Keen to know more? Speak with our team today about lifting safely.
